How to use A to D converters

Setup ADC so ADC1 and ADC2 active with a calibration of 0.1953 and avg of 16 samples
Add background image to library

Create page style using background image
Create draw style for background box
Create draw style for slide box
Create text style for variable
Create variable for ADC1 value
Create variable for ADC2 value

Define a page named "pageName" with style "pageStyle"

Create a box for ADC1 background
Create a box for ADC1 slider
Create a text entity for ADC1 value
Create a box for ADC2 background
Create a box for ADC2 slider
Create a text entity for ADC2 value
Create page loop that runs forever
load the internal ADC2 variable into adc2val variable
load the variable to text entity
draw the slide box to be the adcvalue wide
load the internal ADC1 variable into adc1val variable
load the variable to text entity
draw the slide box to be the adcvalue high

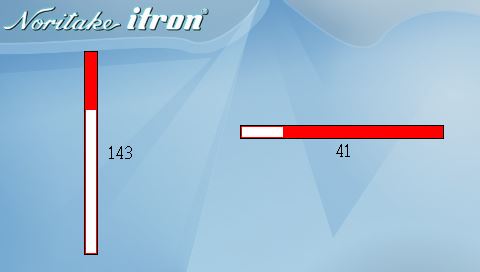

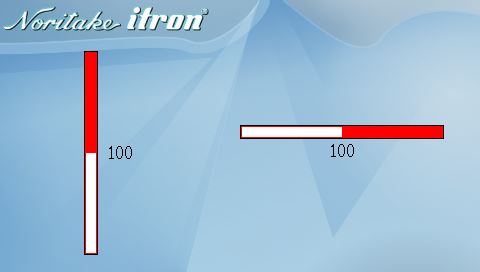

refresh the page

After loading show the page named "pageName"

SETUP(ADC) {active=12;calib1=.1953;calib2=.1953;avg1=16;avg2=16;}
LIB(background,"SDHC/bground.png");

STYLE(pageStyle, Page) {image=background;}
STYLE(barstyle, Draw) {type=Box;back=White;curRel=BL;}
STYLE(boxstyle, Draw) {type=Box;col=Black;width=1;back=red;curRel=BL;}
STYLE(textStyle, Text) {font=Ascii16;col=Black;}
VAR(adc1val,0,U16);
VAR(adc2val,0,U16);

PAGE(pageName, pageStyle)
{
DRAW(Bord1,14,204,boxstyle,84, 254);
DRAW(bar1,10,200,barstyle,86, 252);
TEXT(Val1,adc1val,textStyle,120, 152);
DRAW(Bord2,204,14,boxstyle,240, 138);
DRAW(bar2,200,10,barstyle,242, 136);
TEXT(Val2,adc2val,textStyle,342, 150);
LOOP(myloop,FOREVER)
{
LOAD(adc2val, ADC2);
TEXT(Val2,adc2val);
DRAW(bar2,adc2val,10);
LOAD(adc1val,ADC1);
TEXT(Val1,adc1val);
DRAW(bar1,10,adc1val);;
}
}
SHOW(pageName);
