How To Do - Example Projects

 Click on the title to open the example project
Click on the How to projects above to see the basic sample code to help you create your projects quickly and efficiently.
Each "How To" has a overall description as well as a basic line by line detail of code.
You can download the project or copy the menu file to clipboard

Basic Entities     Basic animation     Basic functions
Add Image   Create button   Basic math operations
Draw colour boxes   Show page - multiple pages   Math functions
Draw colour lines   Flashing text message   Create random number
Draw colour vectors   Animation with pointers   Plus and Minus
Draw colour circles   Scroll text message   Show and format Time and Date
Draw colour ellipses   Move images (TouchX, TouchY)   Save Timestamp to text file
Draw arcs (ellipses with angle)   Move images with buttons   Password Entry Lock
Add multiple rows text     Move images (press button)     Menu Selection
Use pointers   Create slider
Text Hello World   Show and hide entities   Graphs
Create Dynamic Entities     Dial needle   Create X-Bar Graph
      PNG Transparency     Create Y-Bar Graph
Interfaces and Hardware             Trace graph from array
Create IO Counter           Draw sinusoid graph
External Key             Draw graph - DNA style
Use A to D converters           Draw line graph
Send and receive data - RS232
Keyboard Control

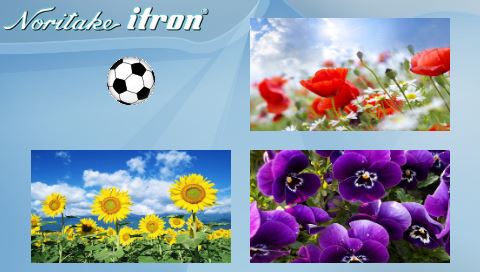

How to add images

Add to images to library
 Remove background colour from Ball image




 Create a style for page
 Create styles for images with different CurRel's




 Define a page named "pageName" using "pageStyle"

 Place background image at position 0,0 using imageStyle
 Place Ball image at position 130,80 using imageStyle2
 Place img1 image at position 230,150 using imageStyle3
 Place img2 image at position 250,130 using imageStyle4
 Place img3 image at position 250,140 using imageStyle

 After loading show the page

LIB(background,"SDHC/bground.png");
LIB(BallImg,"SDHC/BallImg.bmp?back=\\ff0000");
LIB(img1,"SDHC/img1.png");
LIB(img2,"SDHC/img2.png");
LIB(img3,"SDHC/img3.png");

STYLE(pageStyle, Page) { back = black;}
STYLE(imageStyle, Image) { curRel=TL;}
STYLE(imageStyle2, Image) { curRel=CC;}
STYLE(imageStyle3, Image) { curRel=TR;}
STYLE(imageStyle4, Image) { curRel=BL;}

PAGE(pageName, pageStyle)
{
IMG(imageBackground,background,imageStyle,0,0);
IMG(imageBall,BallImg,imageStyle2,130,80);
IMG(image1,img1,imageStyle3,230,150);
IMG(image2,img2,imageStyle4,250,130);
IMG(image3,img3,imageStyle,250,150);
}
SHOW(pageName);
