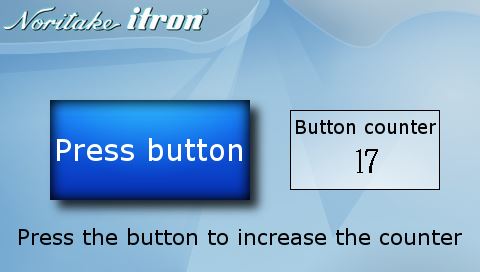

How to create button

Add background image to library
Add Button image to the library

Create page style using background image
Create a text style
Create a image style
Create a key style type equal changed
Create a variable for counter

Define a page named "pageName" with style "pageStyle"

Create image entity using the prbtn image from library
Hide the image entity

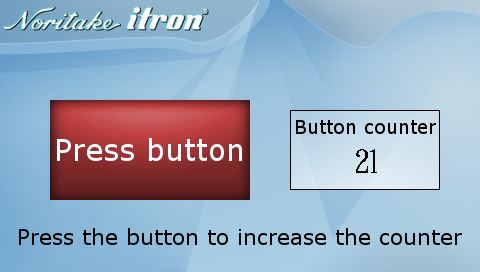

Create key which shows prbtn image on key press and on release adds one to varCounter variable and hides image entity
Create text entity to display the varCounter variable

After loading show the page named "pageName"

LIB(background,"SDHC/bground.png");
LIB(prbtn,"SDHC/prbtn.png");

STYLE(pageStyle, Page) { image = background; }
STYLE(textStyle, Text) { font=Ascii32; col=Black; }
STYLE(imageStyle, Image) { currel=TL; }
STYLE(keyStyle, Key) { currel=TL; action=C;}
VAR(varCounter,0,U16);

PAGE(pageName, pageStyle)
{
IMG(imageButton,prbtn,imageStyle,50,100);
HIDE(imageButton);
KEY(keyButton,[SHOW(imageButton);;], [CALC(varCounter,varCounter,1,"+");TEXT(textCounter,varCounter); HIDE(imageButton);;],200,100,keyStyle,50,100);
TEXT(textCounter,varCounter,textStyle,366,160);
}
SHOW(pageName);
