How to draw colour ellipses

Create a library with the background image

Create a style for page with the image as background
Create a style for the ellipse1 - colour gold, border white with 20px width, alignment to top-center.
Create a style for the ellipse2 - colour darkgreen, border black - colours written with hex values
Create a style for the ellipse3 - colour blue, border navy with 6px width, alignment to center-right.


Define a page named "pageName" with style "pageStyle"
Set current position to X=70px, Y=150px

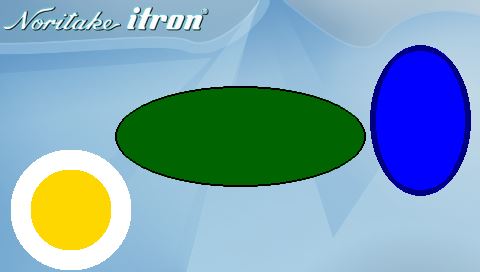

Draw the ellipse (circle) with have here only one size parameter - diameter=120px
Set current position to X=240px, Y=136px
Draw the ellipse named "ellipse2" with style "drawStyle2"
Ellpse "ellipse2" has height=250px and width=100px
Draw the "ellipse3" with style "drawStyle3", the position is defined here directly in DRAW command - X=450px, Y=50px
After loading show the page named "pageName"

LIB(background,"SDHC/bground.png");

STYLE(pageStyle, Page) { image = background; }
STYLE(drawStyle1, Draw) { type = Ellipse; back = gold; col = white; width = 20; currel=TC; }
STYLE(drawStyle2, Draw) { type = Ellipse; back = \\006400; col = \\000000; width = 2; currel=CC; }
STYLE(drawStyle3, Draw) { type = Ellipse; back = blue; col = navy; width = 6; currel=CR; }

PAGE(pageName, pageStyle)
{
POSN(70, 150);
DRAW(ellipse1, 120, drawStyle1);
POSN(240, 136);
DRAW(ellipse2, 250, 100, drawStyle2);
DRAW(ellipse3, 100, 150, drawStyle3, 470, 120);
}
SHOW(pageName);
