How to show page - multiple pages

Add background images to library


Create styles for pages with the images as background

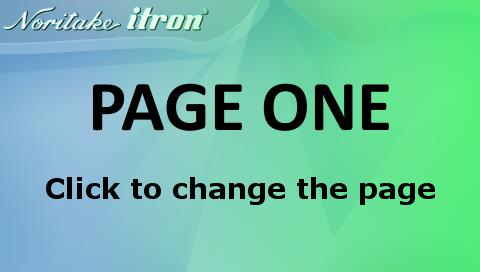

Define a page named "pageOne" with style "pageStyle"

Create a Key that runs the inline function to show pageTwo

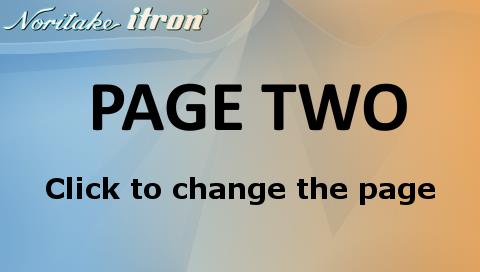

Define a page named "pageTwo" with style "pageStyle2"

Create a key that runs the inline function to show prev_page

After loading show the page named "pageName"

LIB(backgroundP1,"SDHC/bground1.png");
LIB(backgroundP2,"SDHC/bground2.png");

STYLE(pageStyle1, Page) { image = backgroundP1; }
STYLE(pageStyle2, Page) { image = backgroundP2; }

PAGE(pageOne, pageStyle1)
{
KEY(KeypageOne,[SHOW(pageTwo);],480,272,TOUCHR,240,136);
}
PAGE(pageTwo, pageStyle2)
{
KEY(KeypageTwo,[SHOW(prev_page);],480,272,TOUCHR,240,136);
}
SHOW(pageOne);
