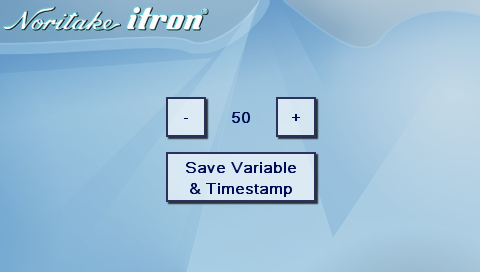

How to save time and Date to textfile

Create a library with the background image
Add font file to Library

Create a style for page with the image as background
Create a style for page text
Create a style to format the Time and Date correctly

Create Fileobj variable required to write to file
Create Res variable that holds save status

Create a Value variable
Create a Variable to store Time/Date

Define a page named "pageName" with style "pageStyle"
Create a key to save value and timestamp
Create the text value
Create a minus key to adjust value
Create a plus key to adjust value

Create function for plus key that limits value to 100
Create function for minus key that limits value to 0
create a function that saves value and timestamp
Load RTC value into TimeVar
Append the text file Log1.txt on SD card and add the value and TimeStamp and CR

After loading show the page named "pageName"

LIB(background,"SDHC/bground.png");
LIB(asc_16,"SDHC/asc_16b.fnt");

STYLE(pageStyle, Page) { image = background; }
STYLE(textstyle, Text) { font = asc_16b; col =\\000d55; maxRows=2; justify=c;}
STYLE(TimeStyle,Data) {type=text; length=100; format="H:i:s jS F Y";}

VAR(varFileObj, 0, FILEASC );
VAR(varRes,"",TXT);

VAR(Value,50,U8);
VAR(TimeVar,"",TimeStyle);

PAGE(pageName, pageStyle)
{
POSN(240,176);
KEY(key1,fncLogStatus1,150,50,TOUCH);
POSN(240,116);
TEXT(ValueText,Value,textStyle);
POSN(185,116);
KEY(KeyM,MinusF,40,40,TOUCHR);
POSN(295,116);
KEY(KeyP,PlusF,40,40,TOUCHR);
}

FUNC(PlusF){IF(Value<100?[CALC(Value,Value,1,"+");TEXT(ValueText,Value);;]);}
FUNC(MinusF){IF(Value>0?[CALC(Value,Value,1,"-");TEXT(ValueText,Value);;]);}
FUNC( fncLogStatus1 )
{
LOAD(TimeVar,RTC);
FILE( "APPEND", varRes, varFileObj, "SDHC/log1.txt",,,Value," - ",TimeVar, "\\0D\\0A" );;
}
SHOW(pageName);
