Housing Design Guide
Housing design follow as below

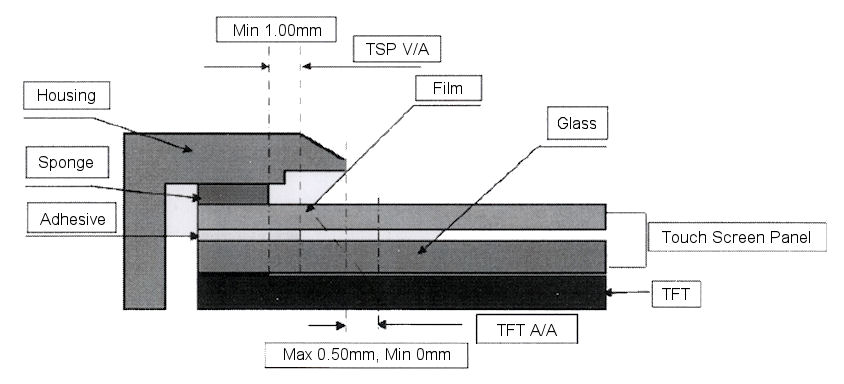

1- Avoid the design that housing overlap and press on the active area of
the TFT.
2- Give enough gap (over 0.5mm at compressed) between housing and the Touch
Screen Panel to
protect wrong operating.
3- Use a buffer material (gasket) between the Touch Screen Panel and housing to protect
damage and wrong operating.

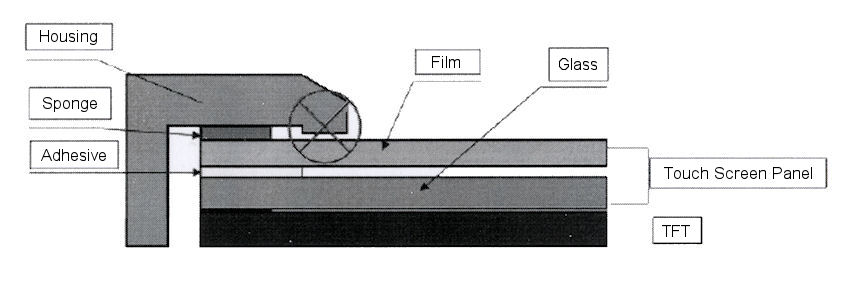

4- Avoid the design that buffer material overlap and press on the inside of
Touch Screen Panel view area.
|
